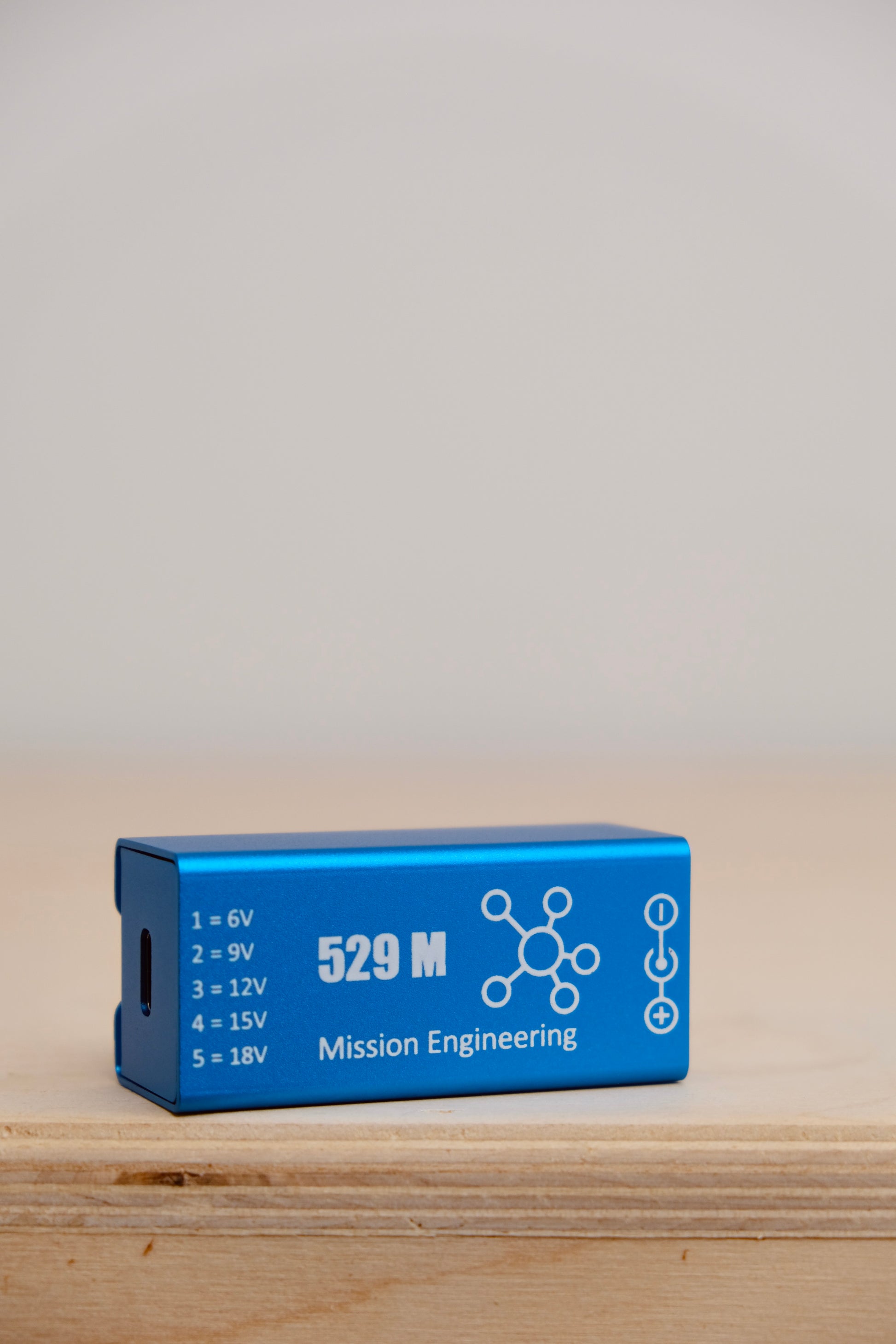

Mission Engineering 529M USB-PD converter

Mission Engineering 529M USB-PD converter

Regular price $79.00 USD
Regular price Sale price $79.00 USD
Sale Sold out
Shipping calculated at checkout.

Brand New. Authorized Dealer.

From the manufacturer:

COMPACT, HIGH EFFICIENCY USB-PD CONVERTER FOR EFFECTS PEDALS, MULTI-EFFECTS AND OTHER AUDIO DEVICES

Convert an external USB-PD battery pack or charger into a single high current (3000mA) output with five selectable voltages. The 529M delivers up to 60W of power to modern digital modelers and multi-effects from a tiny, ultra-lightweight device. The 529M is about the size of a 9V battery and weighs just one ounce.

The 529M can be used with a daisy chain cable to provide a stable 9V to large numbers of analog effects pedals from a single battery or USB wall charger. It can also be used as a single output power supply for high current devices such as the Line 6 HX series.

The output voltage can be changed using a small switch to 6V, 9V, 12V, 15V or 18V, allowing the 529M to be used to power almost any effects pedal and similar devices that require different voltages.*

Input
USB PD 3.0 Type C

Output
6V, 9V, 12V, 15V, 18V @ 3000mA Max
2.1mm center pin negative

Dimensions
2.4″ x 1″ x 1″
1.1oz

Construction
Aluminum case
Blue anodized

* The 529M requires a USB C power source such as a battery or wall charger with Power Delivery (PD) capability. Available output voltages and current will depend on the capabilities of the power source. We recommend the Mission 529 Power bank which includes a 20,000mAh rechargeable battery pack and a 45W USB wall charger for use with the 529M.
