Coppersound Pedals

TRIPLEGRAPH DIGITAL OCTAVE PEDAL – COPPERSOUND PEDALS X JACK WHITE

TRIPLEGRAPH DIGITAL OCTAVE PEDAL – COPPERSOUND PEDALS X JACK WHITE

Regular price $399.00 USD
Regular price Sale price $399.00 USD
Sale Sold out
Shipping calculated at checkout.

Brand New. Authorized Dealer.

From the manufacturer:

– State of the art digital octave pedal designed by CopperSound Pedals & Jack White
– Octave down, octave up, killswitch, and auxiliary FX loop
– Spotless tracking, high-power DSP Engine Technology
– Independent latching & momentary options for both octaves

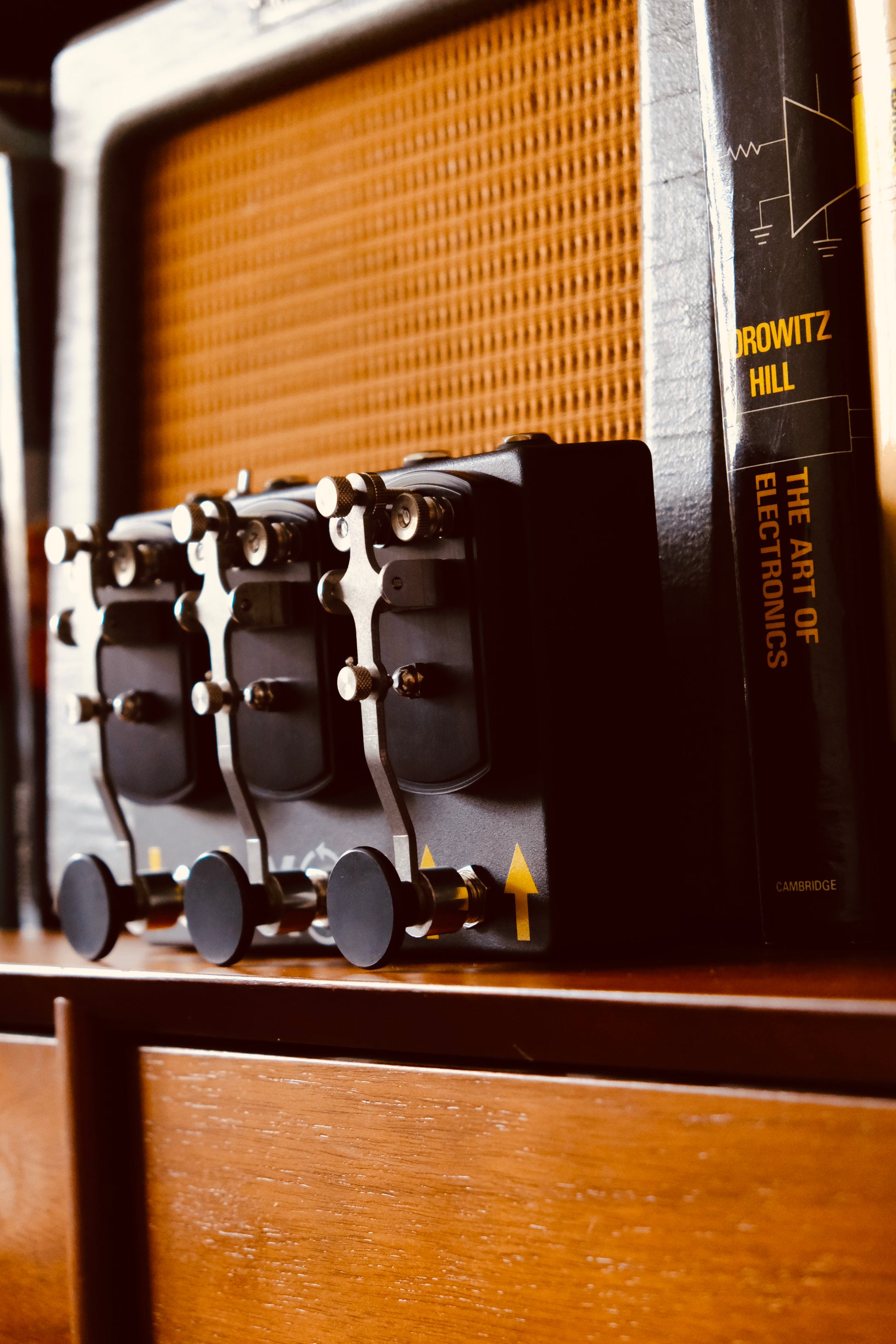

– Custom designed, proprietary Telegraph Keys for effortless triggering
– Engineered for foot and hand use

TRIPLEGRAPH – A NEW, STATE OF THE ART DIGITAL OCTAVE PEDAL

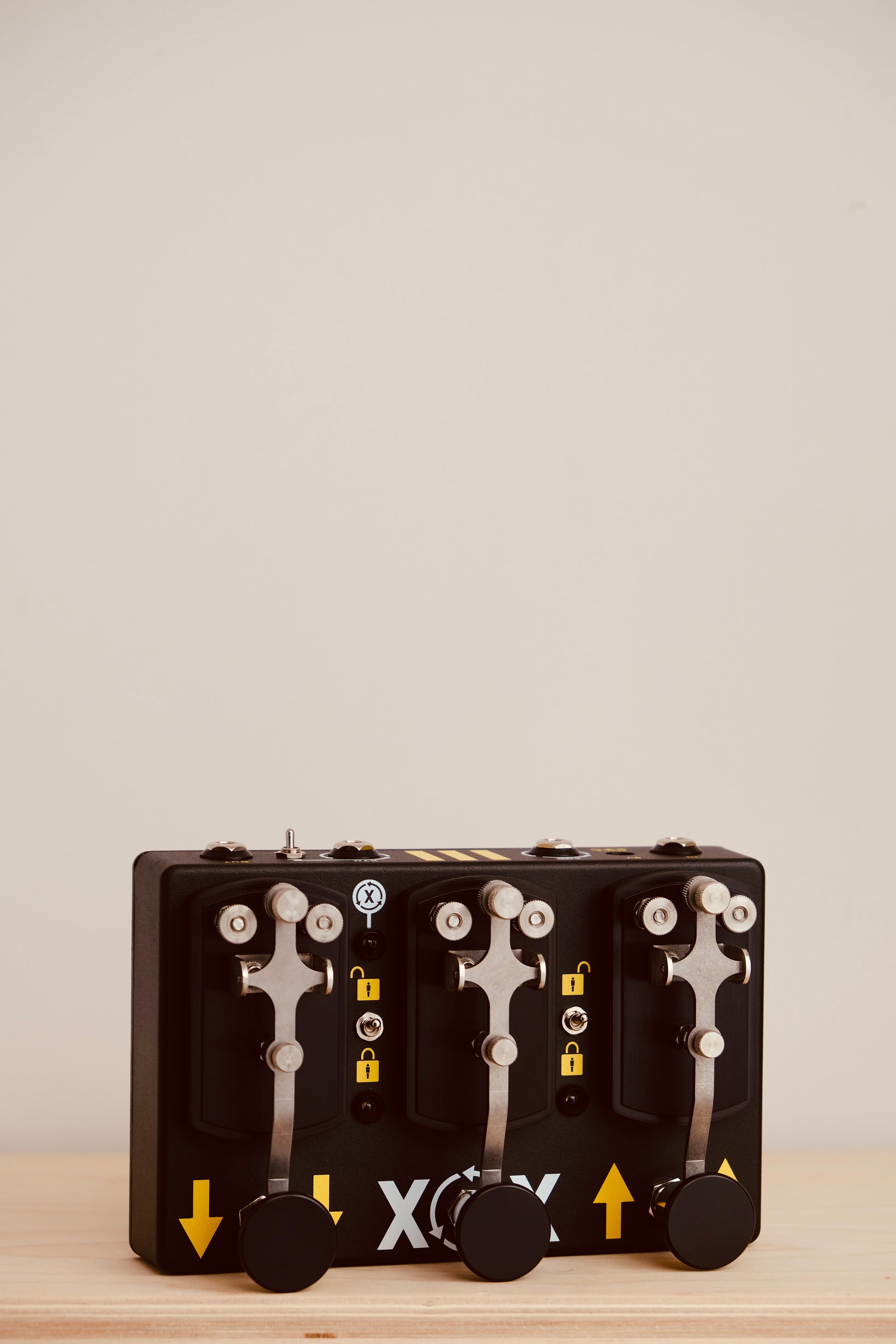

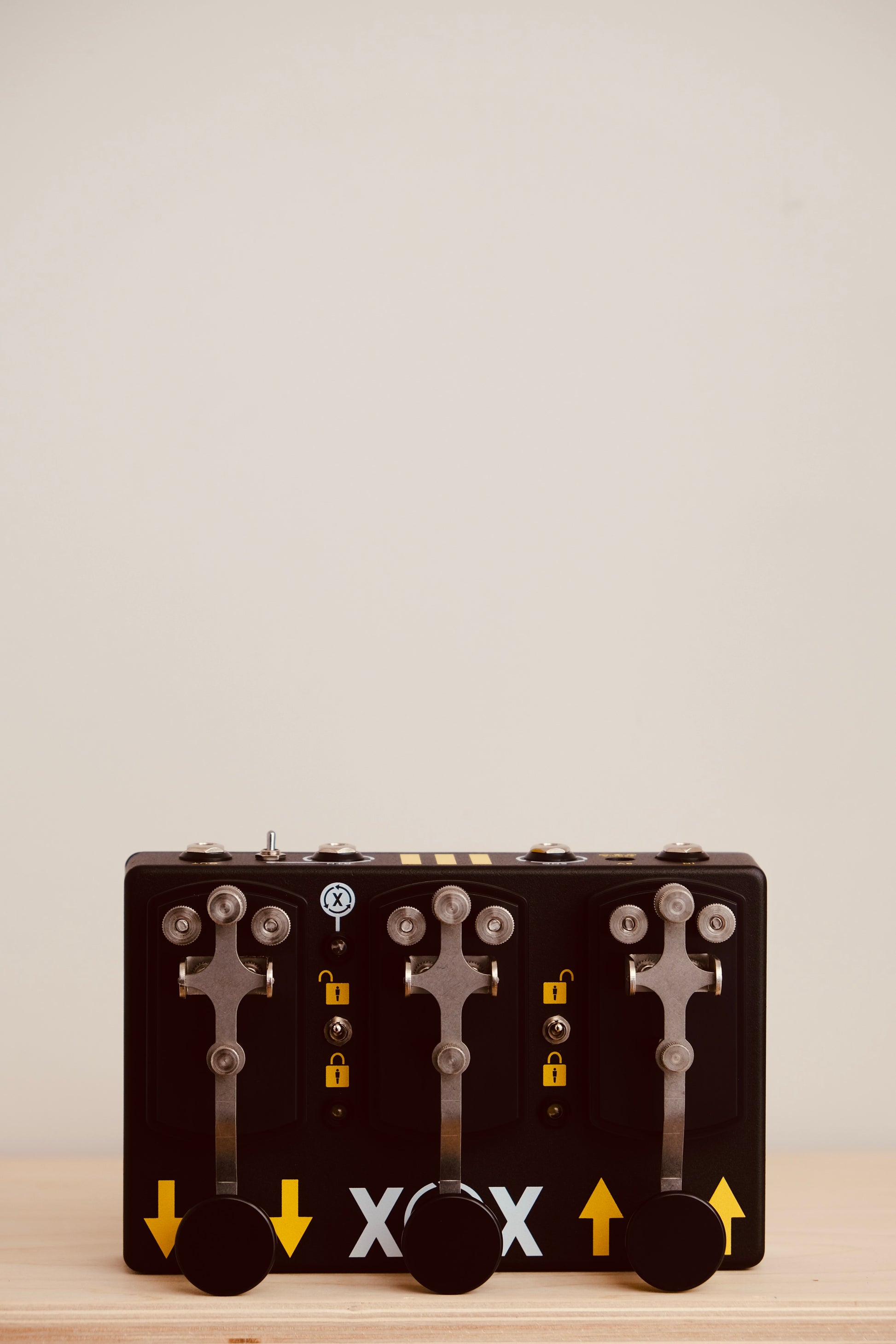

The Triplegraph is a digital octave pedal designed by CopperSound Pedals and Jack White, featuring three proprietary telegraph keys and an integrated auxiliary loop. Utilizing a high-power DSP Blackfin Processor, Triplegraph triggers an octave down with the left keyoctave up with the right key, while the middle key activates a killswitch or auxiliary loop. In KILL mode, the middle key acts as a momentary killswitch, allowing the player to remove their dry signal and attain a fully wet octave up and/or down when used in conjunction with the octave keys. In AUXILIARY mode, the player can connect one or more of their favorite effects in parallel with the octaves via the send/return jacks, and trigger them in momentary bursts.

The high and low octaves can be triggered in parallel with the dry signal when the octave keys are pressed independently. The octaves track seamlessly and can be triggered in latching or momentary modes, using our “Loctave” toggle switches. The telegraph keys themselves are composed of custom stainless steel and aluminum components, making them indestructible and exceedingly durable for both hand and foot operation. Over four years in the making, the collaborative result is an innovative, state of the art clean-tracking octave pedal, capable of standing its own against industry standards.

USER MANUAL:
Triplegraph User Manual

Specs:

  • Power Consumption: 250mA
  • Power supply available here.
  • Dimensions: (W) 7.38in x (H) 4.7in

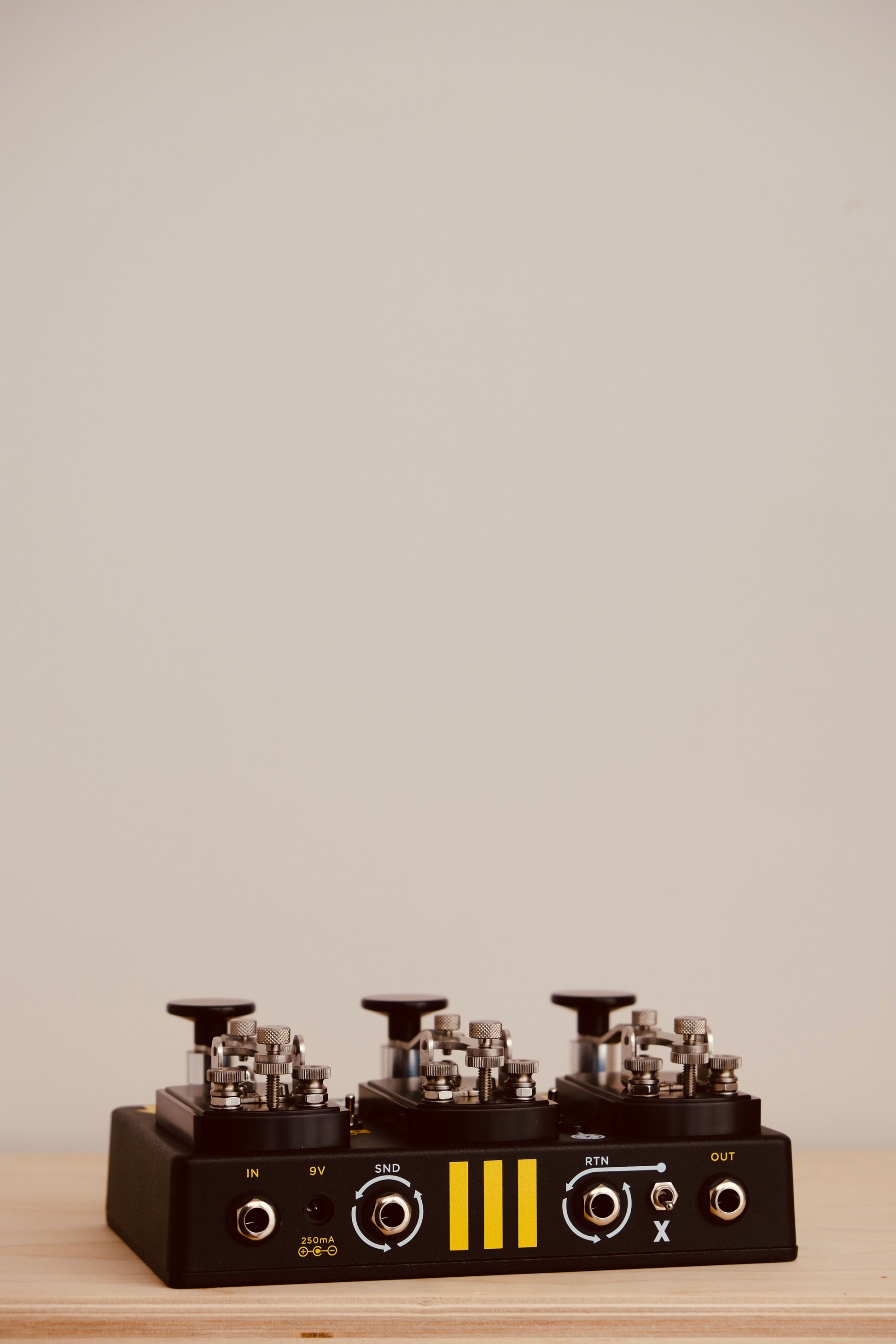

  • All audio jack are 1/4″ Mono
